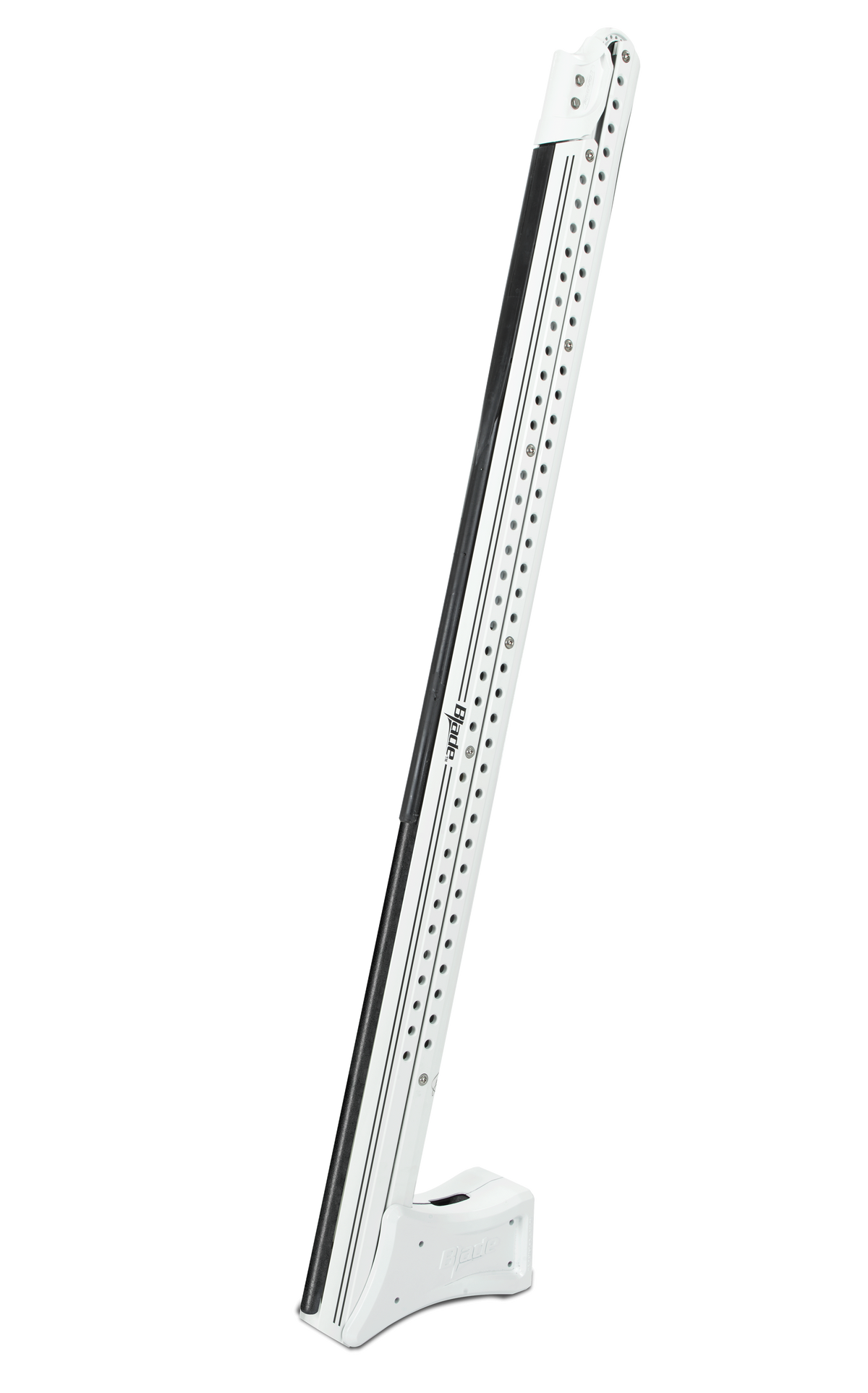

Power-Pole Blade Edition — Independent Pump & Blade, 10ft, White

Power-Pole anchoring equipment. Contact Elite Marine Service for availability, fitment and installation.

Part #: PP-BLS-10-WT

Specifications & included equipment

• Pump: Independent Pump & Blade
• Size: 10ft
• Color: White
• Two button Key Fob: Included with single blade anchor
• Boat Size: Up to 28ft or 4500 lbs
• Max Speed: 0 to 10ft – 4.66 sec, 0 to 8ft – 4.025 sec
• Deployment depth: 10 and 8 feet deep
• Retracted height: 10ft – 68in, 8ft – 55in (from bottom of stern bracket to top of knuckle)
• Mounting footprint: 5 in W x 6.5 in H
• Weight on transom: Dual Anchor: 10ft – 57.38 lbs. 8ft – 46.30 lbs | Single Anchor: 10ft – 28.69 lbs. 8ft – 23.15 lbs.
• Total weight: Dual Anchor: 10ft — 70.82 lbs. 8ft — 57.84 lbs. | Single Anchor: 10ft — 38.19 lbs. 8ft — 31.7 lbs.
• Power supply: 12V – Brushless motor high volume pump
• Operating system: C-Monster Control System
• Finish: 5-layer Powder Coated
• Battery life: 1,200 cycles per charge (Estimated based on 55 Amp battery)
• Warranty: 2-year warranty - electrical & hydraulics, 5-year warranty - mechanical parts, Lifetime warranty - Everflex spike
• Soft Close Cylinder: Yes
• Drive off protection: Yes
• Warranty: 5 years - mechanical parts 2 years - electrical & hydraulics Lifetime - Everflex™ spike
• Aluminum anchor arms; stainless steel stern bracket with polymer core and brass bearings.
• Preassembled rod joints and top-exit hydraulic hoses.
• Single packages include one anchor, HPU, key fob, surface-mount switch and hydraulic hoses.
• ONE pump dual packages include two anchors, one dual pump, two ONE remotes, mountable cradle and hydraulic hoses.
• ONE pump: quick-release bracket, synchronized movement, manual release and drop-stop valves.
• C-Monster app supports customized settings.

Manufacturer product information

Call to Purchase · 606-261-3361
